  • Oil Rotary Vacuum Pump

Oil Rotary Vacuum Pump

제품사진
  • product_p 버튼
  • Direct vane type vacuum pump
  • product_n 버튼
Direct vane type vacuum pump

VACUUM PUMP 1STAGE (MS220AS, MS370AS, MS500AS) Detail

  • 메뉴얼다운로드
  • 파트리스트 다운로드
  • 리스트
  • 제품사진

  • - Displacement speed(60Hz) : 3320 ~ 8000 ℓ/min
  • - Ultimate Pressure : 1 Stage : 3 x 10-2 Torr
    2 Stage : 5 x 10-4 Torr

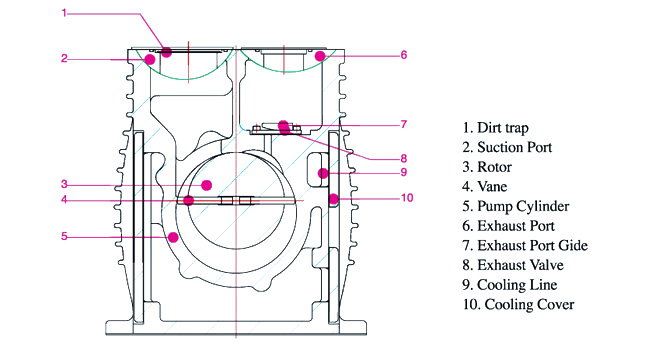

  • Oil rotary vacuum pump (Direct vane type vacuum pump:MS Series MS 1Stage and 2Stage) MS series type pump is oil rotary vacuum pump and designed to be used widely for all vacuum industries in both laboratory and industrial facilities. As shown in fig, this vacuum pump consists of pump body, including pump housing, rotor being eccentric in cylinder of motor oil case, the front and rear covers of cylinder, and parts related to it. This pump is bases on the principle that pump and motor are connected by flexible coupling, and than, even rotor of pump turns as motor turns. As rotor rotates, two vanes in groove of vane of rotor turn, making contact with the internal side of cylinder by centrifugal force. The gas thus drawn in through the intake port with dirt. Trap passes the open airing isolation valve and streams into the pump chamber. As vanes being rotated pass near the intake aperture, the gas in confined between two vane and then, turn toward exhaust valve. Passing exhaust valve, gas starts to be compressed, and the fully- opens exhaust valve and is exhausted through exhaust port. The inside and vane of cylinder, vane and vane of rotor and moving parts will be lubricates, and also, oil to be given to cylinder for security of seals.
  • •The stable cooling effect

    Because the cooling water is flowing between the first cylinder and the

    oil casing and the cooling effect is superior. (Continuous running is

    possible at low vacuum)


    •Stable vacuum pressure

    The oil pump supplies proper amount of oil inside the cylinder according

    to vacuum pressure degree, which causes very small amount of

    changing vacuum pressure compared to operation hour.


    •The small vibration

    By realizing directly connected driving that the geometric design is

    applied to minimize the eccentric rotation, it shows very small vibration in

    compared to piston type having the same displacement.


    •Weight reduction, and a miniaturized vacuum pump

    Integration of the cylinder and the casingMinimize the installation area of

    the original format.


    •Small noise

    By ideally designing the valve catcher situated at the exhaust valve, we

    realized very small noise.


    •Oil pressure gauge and oil filter are equipped.

    Filtered oil without strange material is supplied inside the oil pump and

    also, you can know when the filter will be changed through the filter

    pressure guage.


    •Excellent compatibility

    It is manufactured in order that the one-stage pump and the two-stage

    pump are mutually compatible.


    •Automatic control oil supply volume

    It properly control oil supply according to pressure inside the cylinder.


    •This pump is designed for easy maintenance.

    Inside extension connected with casing cover ensures the proper space.

    Also, it is designed in order to easily separate oil and humidity in order to

    minimize oil flow even during operation.


    •Simple treatment and easy overhaul

    The casing has several side covers at pump’s side and top for easy

    cleanup, which has everyone easily disassemble and clean up it.


    •ISO standards application

    According to using ISO standards motor application, anyone can shift

    and change the motor easily at anyplace and anytime.


    •Oil Mist Trap are possible to take easily-Option

    Oil Mist Trap is designed for less oil smoke, noise and oil consumption.


    •Gas ballast valve are possible to be easily installed-Option.

    It can take an adoption gas ballast valve in order to reduce condensation

    of moisture.


    •Affixed the oil circulation safety device

    When the oil filter is blocked, automatically, the oil circulation safety device

    immediately supplies the oil which is not filtered to the lubricating parts.






  •
